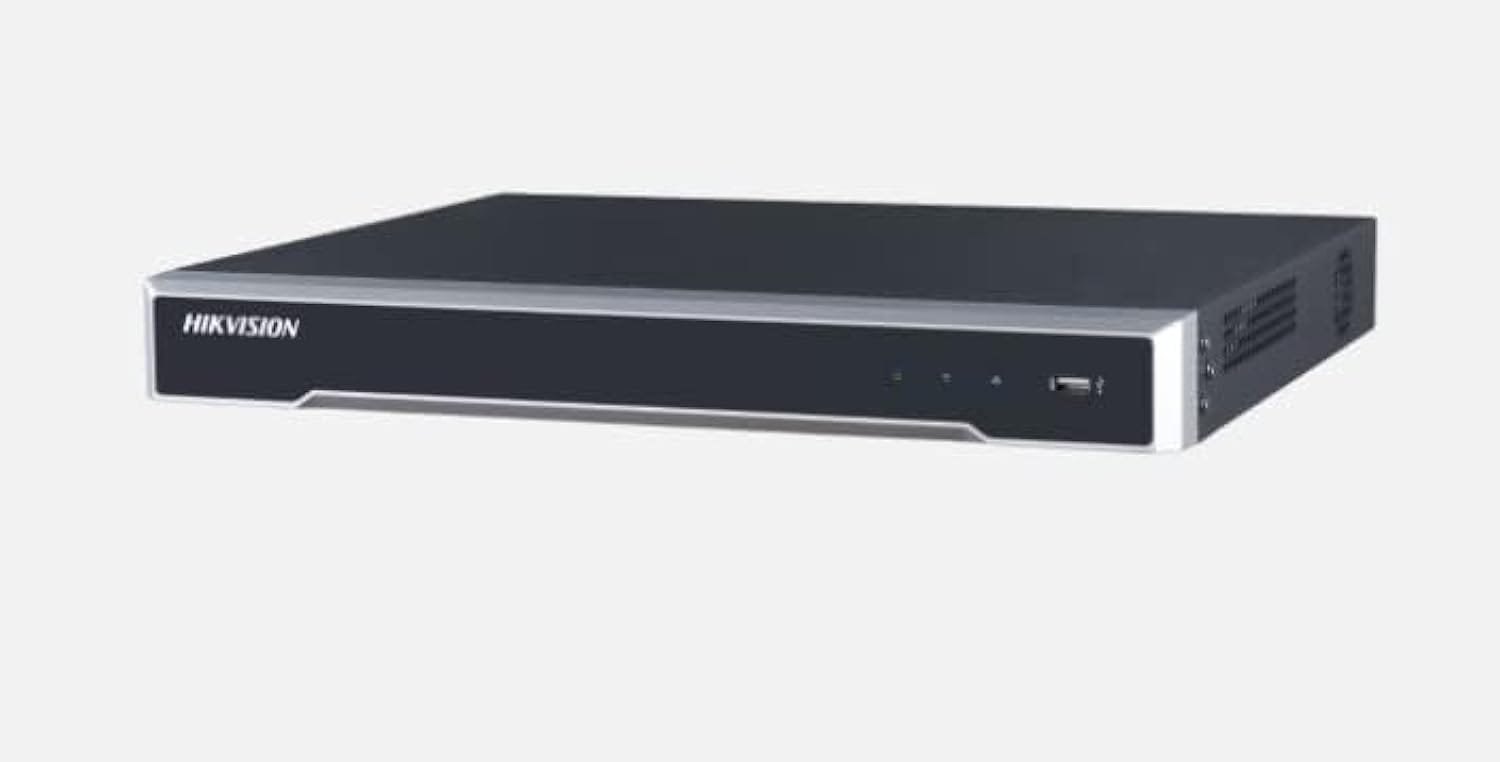

Hikvision DS-7616NI-Q2 16-Channel 4K NVR 1U with Advanced Video Analytics

Description:

The Hikvision DS-7616NI-Q2 is a powerful 16-channel Network Video Recorder (NVR) that offers 4K resolution recording, advanced video analytics, and a compact 1U form factor. It is designed to support up to 16 IP cameras, providing high-quality video surveillance for both residential and commercial applications. With its advanced analytics, including motion detection, line crossing, and intrusion detection, this NVR enhances security and provides valuable insights. Ideal for large-scale surveillance systems, it also offers remote viewing and playback capabilities for convenient access to your footage from anywhere.

Key Features:

• Supports up to 16 IP cameras with 4K resolution recording
• Advanced video analytics for motion detection, line crossing, and intrusion detection
• Compact 1U design for easy installation and space-saving
• High-performance H.265+/H.265 video compression for efficient storage
• Supports 2 SATA hard drives, with up to 12TB storage capacity
• Remote viewing and playback via mobile apps and desktop software
• HDMI and VGA outputs for high-definition display
• Supports up to 16-ch synchronous playback at 4K resolution
• Advanced search functions for easy retrieval of recorded footage
• Reliable 24/7 operation for continuous surveillance

Specifications:

• Channels: 16 channels
• Resolution: 4K (3840×2160), 8MP, 5MP, 4MP, 3MP, 1080p (1920×1080)
• Video Compression: H.265+, H.265, H.264+, H.264
• Video Analytics: Motion detection, line crossing, intrusion detection, and more
• Supported Cameras: IP cameras (up to 12MP)
• Storage: 2 SATA interfaces, up to 12TB storage
• Audio Input: 1-ch audio input
• Video Outputs: HDMI (up to 4K), VGA (up to 1920×1080)
• Network: 1 RJ45 10/100/1000 Mbps Ethernet port
• Power Supply: 12V DC, 5A
• Dimensions: 440 mm x 320 mm x 45 mm
• Operating Temperature: -10°C to +55°C

Frequently Asked Questions (FAQs)

1. What is the maximum resolution supported by the Hikvision DS-7616NI-Q2?
   The Hikvision DS-7616NI-Q2 supports up to 4K resolution (3840×2160), providing ultra-high-definition video recording.
2. How many IP cameras can be connected to the Hikvision DS-7616NI-Q2?
   This NVR supports up to 16 IP cameras, making it ideal for medium to large surveillance systems.
3. What video compression formats are supported by this NVR?
   The DS-7616NI-Q2 supports H.265+, H.265, H.264+, and H.264 video compression formats for efficient storage and bandwidth usage.
4. Does this NVR support remote viewing?
   Yes, the Hikvision DS-7616NI-Q2 supports remote viewing and playback via mobile apps and desktop software, allowing you to access your footage from anywhere.
5. What video analytics features does the Hikvision DS-7616NI-Q2 offer?
   This NVR offers advanced video analytics, including motion detection, line crossing, and intrusion detection, to enhance security and reduce false alarms.
6. How much storage can the Hikvision DS-7616NI-Q2 support?
   The DS-7616NI-Q2 supports up to 2 SATA hard drives, with a total storage capacity of up to 12TB, ensuring ample space for long-term video storage.
7. What are the video output options for the Hikvision DS-7616NI-Q2?
   This NVR offers HDMI output up to 4K resolution and VGA output up to 1920×1080 resolution for high-quality video display.
8. Can the Hikvision DS-7616NI-Q2 record in 4K?
   Yes, the Hikvision DS-7616NI-Q2 supports 4K resolution recording, providing ultra-clear video footage for enhanced security monitoring.
9. Is the Hikvision DS-7616NI-Q2 easy to install?
   Yes, the DS-7616NI-Q2 features a compact 1U design, making it easy to install in standard server racks or other spaces with limited room.
10. Can I use the Hikvision DS-7616NI-Q2 for 24/7 continuous recording?
    Yes, the DS-7616NI-Q2 is designed for continuous 24/7 operation, providing reliable surveillance around the clock.
